CABINS: 5
GUESTS: 10
CREW: 8 IN 4 CABINS

TANK CAPACITIES
FUEL TANK: 34,850L
FRESHWATER TANK: 5,700L
BLACKWATER /GREYWATER TANK: 3,000L

PERFORMANCE
MAXIMUM SPEED: 26.5 KNOTS
CRUISING SPEED: 20 KNOTS
FUEL CONSUMPTION @ CRUISING SPEED: 1000 LITRES/HOUR

CLASSIFICATION & CERTIFICATES

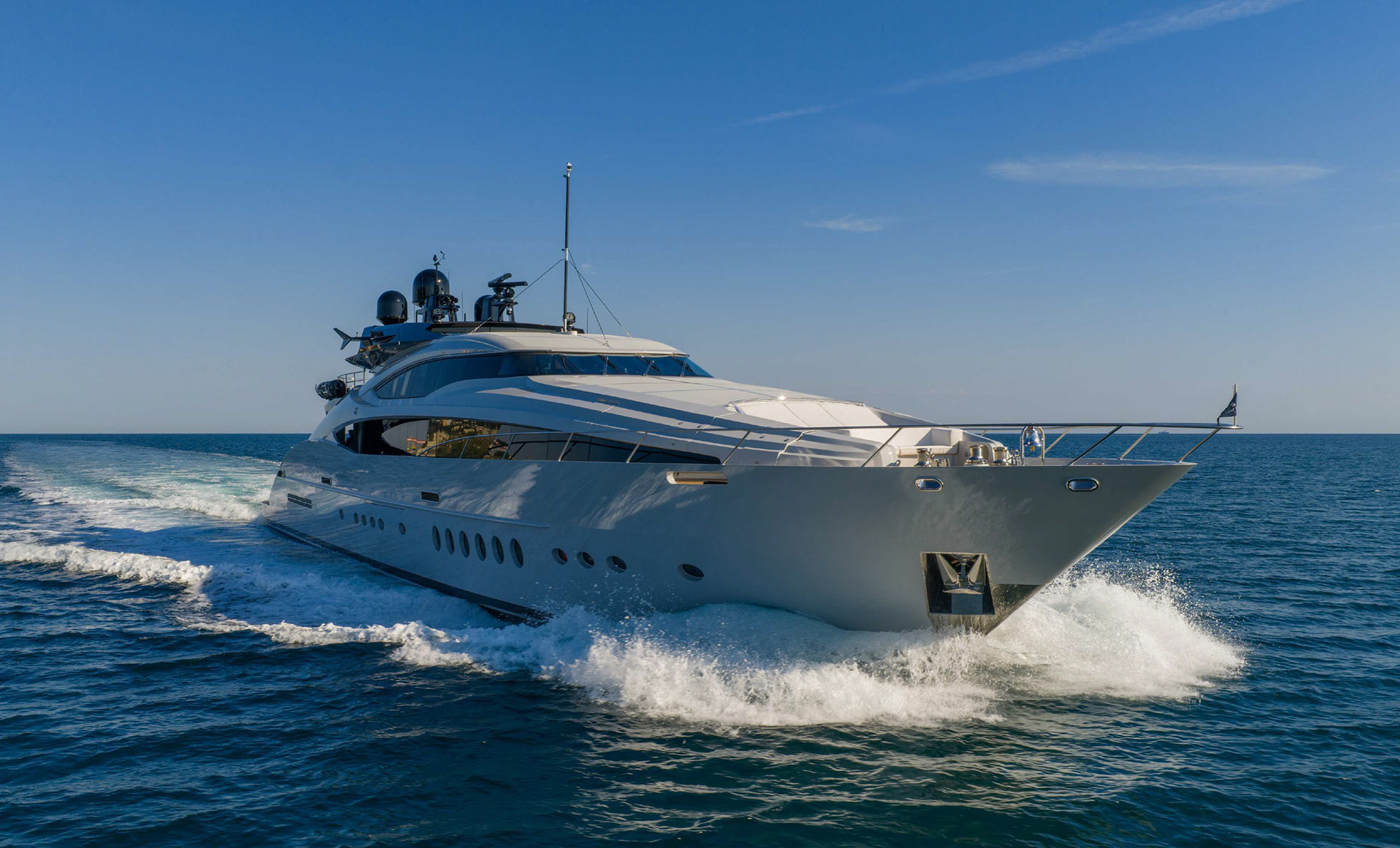

LLOYDS REgISTER: 45.7 m (150") | Palmer Johnson | 20O9(2025)

PROPULSION

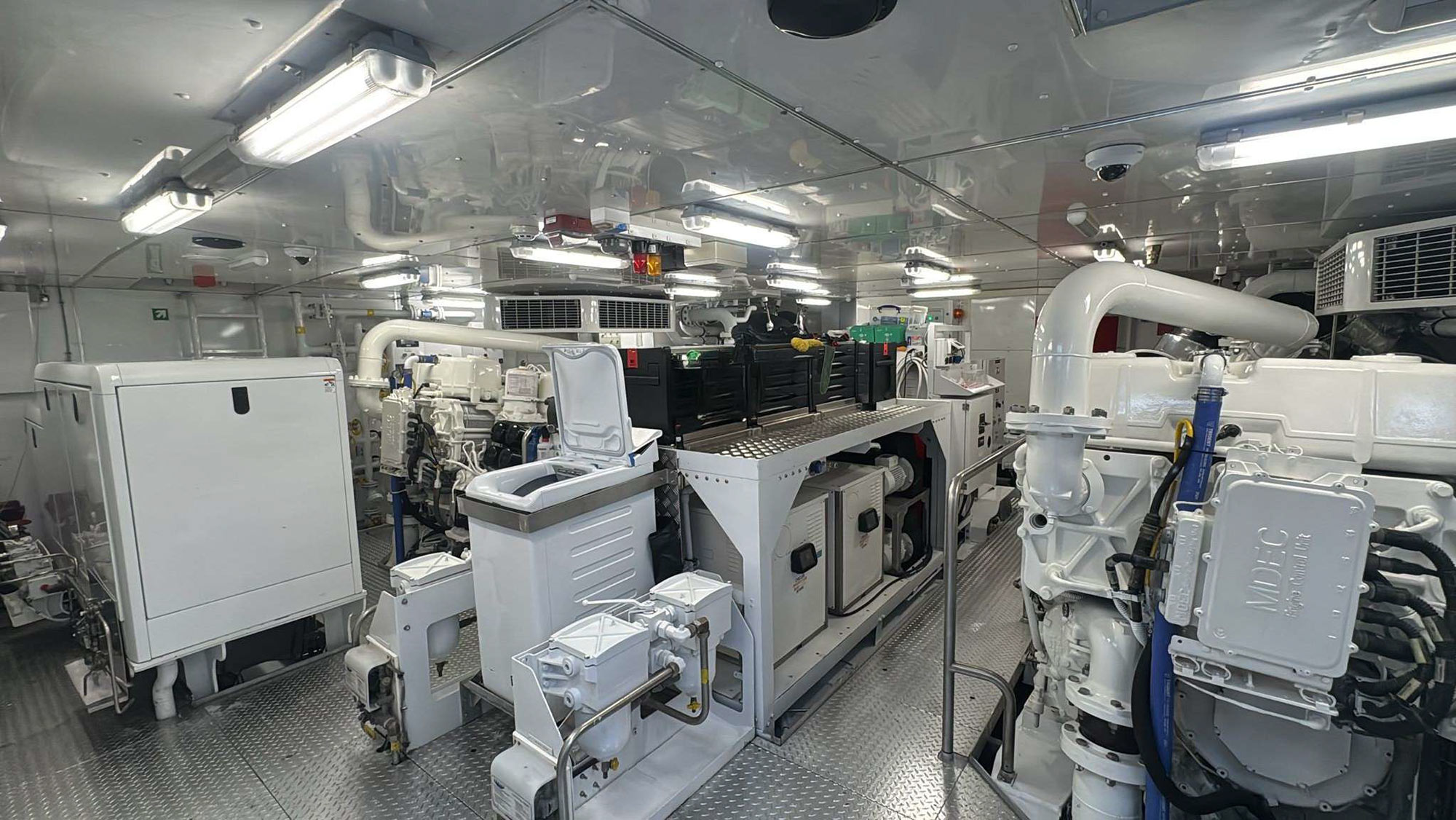

ENGINE TYPE: MTU16V4000M90
ENGINE HOURS: 5022/5023
SHAFTS: 2025 - SHAFT SEAL ENGINES SERVICE

GENERATOR TYPE: KOEHLER 99EFOZD
GENERATORS HOURS: 11917/11933

STEERING, THRUSTERS & STABILIZERS
STEERING GEAR: 2025 - STEERING, ELECTRCO-HYDRAULIC WITH DUALPIMPS. FLY BY WIRE AT HELM
BOW THRUSTER: 2025 - BOW THRUSTER, PROPORTIONAL CONTROL
STABILIZERS: 2025 - NEW FINS STABILIZERS SYSTEM, TRACK 540 W/26XFIN. STAB.

CLIMATE CONTROL
AIR CONDITIONING SYSTEM: 2025 - AC DISTRIBUTION PANEL, COMPLETE OVERALLAND TESTING

FRESHWATER SYSTEM
FRESH WATER PUMPS: 2025 - RENEWAL
BLACK & GREY WATER SYSTEM
BLACK & GREY WATER TREATMENT: 2025 - ORDINARY MAINTENCANCE HAMMAN SYSTEM


FIREFIGHTING EQUIPMENT
FOG/MIST FIRE SYSTEM FOR ACCOMODATIONS: 2025 - FIRE SYSTEM OVERALL CHECK
ENGINE ROOM FIRE SYSTEM, NOVEC TYPE: 2025 - SYSTEM OVERALL CHECK
FIRE DAMPERS ON ENGINBE ROOM INTAKE AND EXHAUST VENTS: 2025 - PORTABLE FIRE EXTINGUISHER OVERHAUL 4 X FULL SERVICE IN WINTER 2025
DELUGE FIRE SYSTEM FOR THE TENDER GARAGE: FULL SERVICE IN WINTER 2025
LIFE RAFTS: 2025 - 2 LIFEBUOY ASSEMBLED WITH FLOATTING LINE AND LIGHTS
BREATHING APPARATUS
LIFE JACKETS: 2025 - FIRST AID CLASS ___ BAG
IMMERSION SUITS: AC&VENTILATION SYSTEM
LIFE RINGS: GAS DETECTION:
MEDICAL EQUIPMENT: 45.7 m (150") | Palmer Johnson | 20O9(2025)

COMMUNICATION EQUIPMENT
DSC ENCODER: FURUNO FM-8800S
DSC WATCH RX: FURUNO FM-8800S
VHF GENERAL R/T: FURUNO FM-8800S
GLOBAL SATELLITE NAVIGATION RECEIVER X: 2025 - FURUNO GP/150
UHF RADIOTELEPHONES: 2025 - VHF - RADIO - ICOM X 8
PORTABLE VHF: 2025 - SAILOR SP 3520 PORTABLE VHF GMDSS X 2
EPIRB: 2025 - ACR RLB-44 - COSPAS-SARSAT 406MHZ/121,5 MHZ)
RADAR TRANSPONDERS: 2025 - SARTS - 9GHZ, SAILOR 5052 AIS - SART
NAVTEX RECEIVER: 2025 - NAVTEX RECEIVER - FURUNO NX-700B

NAVIGATION EQUIPMENT
X-BAND RADAR: 2X FULL REFURBISHED IN 2025 (MOTOR BRUSH AND MAGNETRON REPLACEMENTS)
UPS: 2025 - INSTALLATION OF 6000W UPS UNIT WITH LAN INTERFACE
MAGNETIC COMPASS: 2025 MAGNETIC COMPASS MOD. RITHIE POWERDAMP MAGHETIC COMPASS
DEPTH SOUNDER: 2025 AIRMAR TRIDATA TRANNSDUCER
GPS/AIS: 2025 AIRMR TRIDUCER ECO 2025 STATION COMPLIANT WITH RECOMMENDATION ITU-R M. 1371-3
SEARCH LIGHTS: 2025 - 2 X GLAMOX LUMINELLI SL
ARRIAL - ANTENNAS: 2025 REPLACEMENT OF THE NAV/COM AEREAL ANTENNAS (LIKE GPS, NAVTEX, VHF, AIS... )INCLUDING B&G HEADMAST UNIT FOR WIND SENSOR

DECK EQUIPMENT
PASSARELLE: 2025 - COMPLETE OVERALL AND TESTING
SWIMMING LADDER: 2025 - COMPLETE OVERALL AND TESTING

AUDIO VISUAL EQUIPMENT (2025 FULL UPGRADE)
VIDEO EQUIPMENT: 2025 - LG TV
AUDIO EQUIPMENT: 2025 - SONOS AMPLIFED SYS. + BAW AND SONOS SPEAKERS
CONTROL: 2025- IPADS
LIGHT MANAGEMENT: 2025 - LUTRON SYS.
IT: 2025 APPLE TV
COMMUNICATION: 2X 5G ANTENNAS AND 2X STARLINK ANTENNAS - INCLUDING NEW PEPLINK FOR BROADCAST COMMUNICATION MANAGEMENT

DOMESTIC EQUIPMENT (2025-MIELE MARINE, FULL REFURBISHED)
MAIN GALLEY: 2025 MICROWAVE, OVEN, INDUCTION HOB, FREEZER, SINK AND MIXER TAP, HOOD
CREW MESS: 2025 - MIELE CREW MESS AND GALLEY APPLIANCES COMPLETE RENEWAL:
WINE STORAGE: WINE CELLAR
LAUNDRY: 2025 - 2 X WINE CELLAR 2025 - NEW WASHER-DRYER
MAIN DECK -EXTERIOR BAR: FRIDGE K31222 ICE MAKER (HOSHIZAKI)
FLYBRIDGE-EXTERIOR: FRIDGE ICE MAKER (HOSHIZAKI)
CREW MESS: FRIDGE

OTHER EQUIPMENT

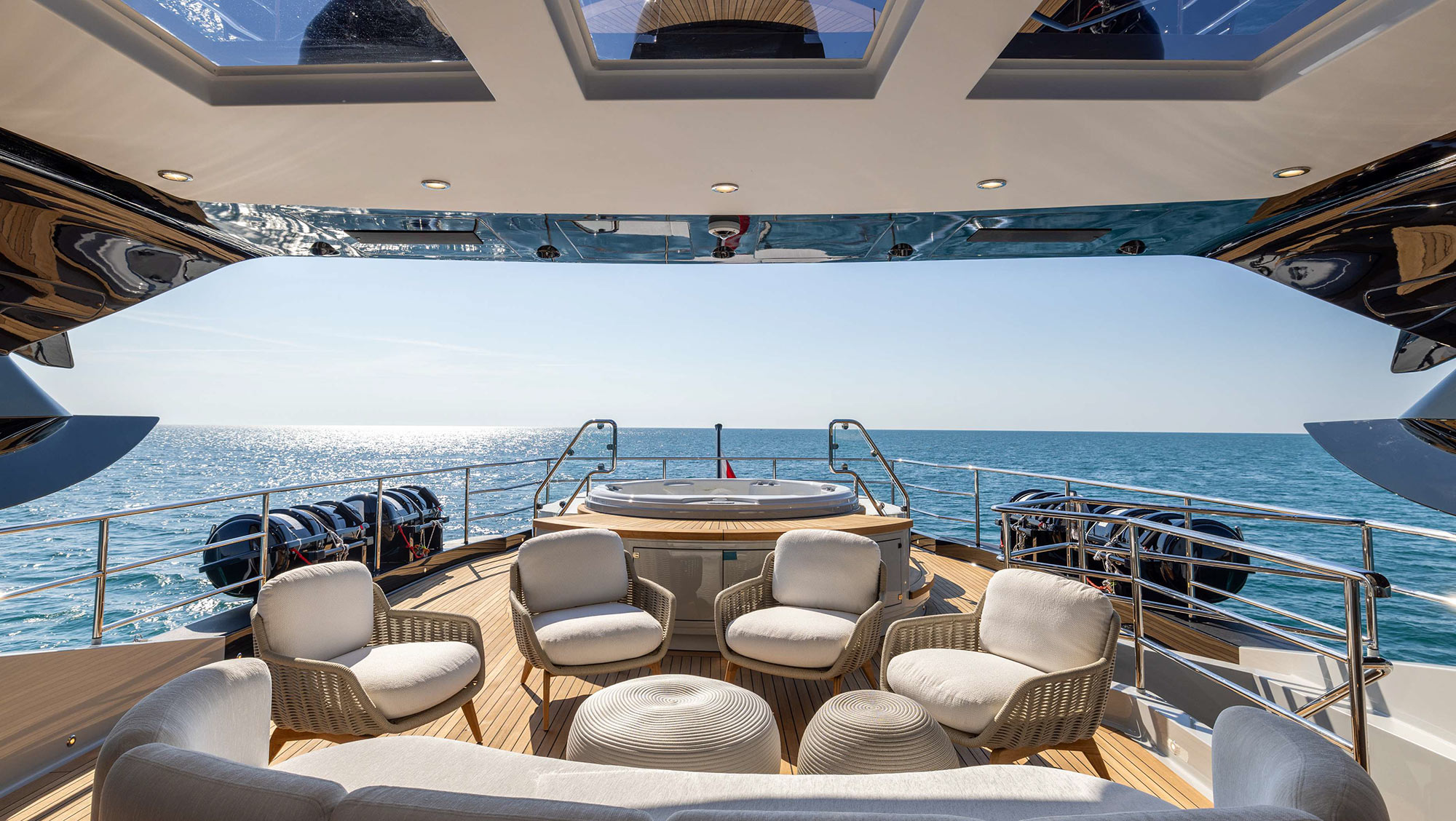

POOL: 2025 - JACUZZI ALIMIA BUILT - IN
HAMMAM: 2025 ANNUAL MAINTENANCE SERVICE
PAINT: 2025 - HULL, TOP SIDE AND SUPERSTRUCTURES, DUPONT PAINT 2025 -RUN PERSONAL LIVE AND TECHNOGYM BENCH, KINESIS PERSONAL VISION.
GYM EQUIPMENT: 2025 - 7 X UNDERWATER LIGHTS, MOD. EXPLORER E8

UNDERWATER LIGHTS

TENDER GARAGE
TENDERS: TENDER WILLIAMS DIESELJET 565 - 2025
WATER SPORTS EQUIPMENT: 2 X NEW JETSKI - 2025 3 X SEABOB - 2025
DIVING EQUIPMENT: YACHTBEACH LUXURY POOL 4,1 X 4,1 X 0,2 M DROPSTICH -2025

WINTER WORKS 2024/2025

ENGINEERING-HULL-ELECTRICAL SYSTEM: ENGINEERING: Main engine maintenance according to the manufacturer's recommendations Main engines and generators: Dismantling injectors and endoscopic inspection Main engines and generators: Dismantling of exchangers water heat exchangers and intercoolers Generator maintenance according to the manufacturer's recommendations Cleaning of water/water heat exchangers Intercooler cleaning Endoscopic inspection Intercooler cleaning Endoscopic inspection Bench injector testing Dismantling and replacement of fresh water pumps Dismantling and replacement of saltwater pumps Routine maintenance (filters and oil) Main engines and spare parts for generators Spare parts are needed for both the Main MTU Engines and the Generators. For the MTU engines, the requirements include oil filters, fuel filters, separator filters, air filters, pre-filters, oil separators, a centrifugal filter insert, gasket kits, engine oil, and coolant. For the generators, the requirements include fuel filters, separators, oil filters, air filters, emission elements, impeller kits, zincs, specific oil for generator sets, specific coolant, and seawater pump components (pump and gasket). SW Line e valves renweal port side and Starbord side Inspection: Check the condition of the valves to ensure there is no corrosion, damage, or leaks. Replacement: If the valves are faulty or old, they should be replaced with new ones. Maintenance: Cleaning, lubrication, and testing of the valves to ensure smooth operation. Testing: Pressure testing the system to make sure there are no leaks or failures after the valve renewal

WINTER WORKS 2024/2025

Gangway: Complete disassembly of the gangway in the workshop Overhaul of hydraulic cylinders Complete overhaul of hydraulic system Drive gear motor overhaul Replacement of wooden walkway with fibre optics insertion Electrical system check Replacement of telescopic slide bushings Replacement of igus bushings Re-anodising of telescopic elements Complete repainting with yard supply paint Reassembly and testing
Swimming ladder: Complete disassembly of ladder in workshop Repainting of steps in ll and painting Sanding of steps Guitar refurbishment -subst. cable-subst. bushes igus-Cylinder overhaul Hydraulic system check Electrical system check Reassembly and testing
Hamann treatment system maintenance: Service for ordinary maintenance
Alfa Laval system maintenance: Service for ordinary maintenance
Service water maker: Service for ordinary maintenance
New fins stabilizer system: replaces existing trac 440w/2ox FIN Stab. With 540 w/26x Fin stab. For better performances. This will use the existing hydraulics, control system and hull mounting equipment.
Stern tube sealant kit overhauling for all three shaft lines: Pipes refurbishment ( in ER where necessary )
Fresh water pump renewal (n1): Chilled Water Piping Insulation & Main Engine vibration dampers. Replacement of Armaflex insulation on the chilled water piping section in the Galley and Gym areas. Installation of new vibration dampers the Main Engines (AA.MM) for thermal and acoustic insulation.
Full set of batteries: Main engine, Generator, Services, Emergency, Radio

EQUIPMENT: Ordinary maintenance to pumps and valves New fuel oil transfer pump for fueling New chilled water transfer pump New priming pump for main engine New priming pump for generator set New Seawater pump New Booster pumps for air conditioning system

WINTER WORKS 2024/2025
Ordinary Maintenance Fancoils: Maintenance and supply of all new fan coil units except for the gym, garage, and crew pantry.
Sanisplit replacement: Overhaul of hydraulic pistons for the garage door and balcony system
Tender trailer overhaul and cable replacement for both port and starboard: Installation of a new track system for tender trailers
New Fender hook: Carbon flag pole, Carbon pole for Masthead unit, n6 carbon stanchions for Balconies
Re-galvanization of both anchor chains
ELECTRICAL SYSTEM: Galley sub-panel redesign and installation. Disconnection and reconnection of the Galley panel. Upgrade of the Jacuzzi pool protection system + differential protection Installation of a dedicated distribution panel for the Jacuzzi pool Main electrical panel: cleaning and maintenance Galvanic potential meter inspection and repair. Maintenance of six inverters, including disassembly, cleaning, and testing. Maintenance of stainless steel electric stern door Electrical main switchboard cleaning, tightening and fans renewal Galley Electrical Panel Renovation: Main Salon Local Rack: One new fixed 8U GDL rack will be supplied for the Main Salon to house the existing Sinto-amplifier and Apple TV. Current Subwoofer will be moved to the new furniture position. Starlink system upgrade, access point renewal, Apple TV replacement, and installation of 3 Poynting antennas for 5G. Glamox Searchlight complete Colouring glossy black Main Engine Exhaust cladding renewal Megger test Zinc anodes renewal Ordinary maintenance of the onboard generator alternators includes insulation checks, disconnection of power lines, dismantling of access points, deep cleaning and sanitization of windings, visual inspection of coils, application of dielectric protective varnish, reassembly of components, final insulation testing, and full functional tests. Installation of a 6000W UPS unit, complete with LAN communication interface

LIGHT: Under water lights update with LED lamps (9 pcs) Model: EXPLORE E8 WELD-IN 6500K white

DOOR: Automatic Door System Installation & Door Maintenance. Supply, installation, and commissioning of a new automation system for a single-leaf swing door, replacing the current one. Maintenance of the Crew Mess and Galley doors, including hardware adjustments and alignment.

WINTER WORKS 2024/2025
TEAK: Dismantling Teak and new teak Stern door Fixed part where the stern door turns Steps No. 10 Outdoor main deck Balconies Bow Bow hatch and frame Pool frame Teak sanding and caulking restoration all over the decks
SANIFICATION AND CLEANING: Sanitising and cleaning of fan coils and AHUs Ducts disassembly and reassembly of all fan coils
PAINT: HULL: Bottom hull sandblasting and new cycle of antifouling cycle Including propspeed application
PAINT: HULL, TOP SIDES & SUPERSTRUCTURE Paint Dupont paint cod Ral 7035 ARTIC GRAY Water line WATER LINE (Two separate bands) Aft transom door Mast and domes Dome Repainting: Full repainting of the dome, including the base No skid renwal in garage Exterior sofas Gangway Engine Room bilge repaint Bilge cleaning and repaint
TOUCH-UP: Complete repaint Jet ski garage
OUTFITTING: Renewal of hull tanks Gray and Black + Fresh water tanks Dismantling of all remaining deck steels: handrails, fairleads, bollards, logos, etc. Disassembly of external fittings and access panels: Bollards on swim platform (P/S) Mooring services inspection hatch. Upper and main deck step lights (floodlights). External furniture doors. Engine room access door. Chain locker hatch doors (bow)

WINTER WORKS 2024/2025
Dismantling and renewal of: Tender launching sled, Deck hardware and hatches, Pantograph door glass (port side) and seat for cleaning, Bath ladder hatch door and related fittings
Exterior glasses and recaulking: Renewal of 22/26 delaminated windows.
Fly bridge control station panel renewal and new dashboard GRP windshield: Polishing of stainless steel anchor pocket and forward bow protection.
Garage re-arrangement and repaint

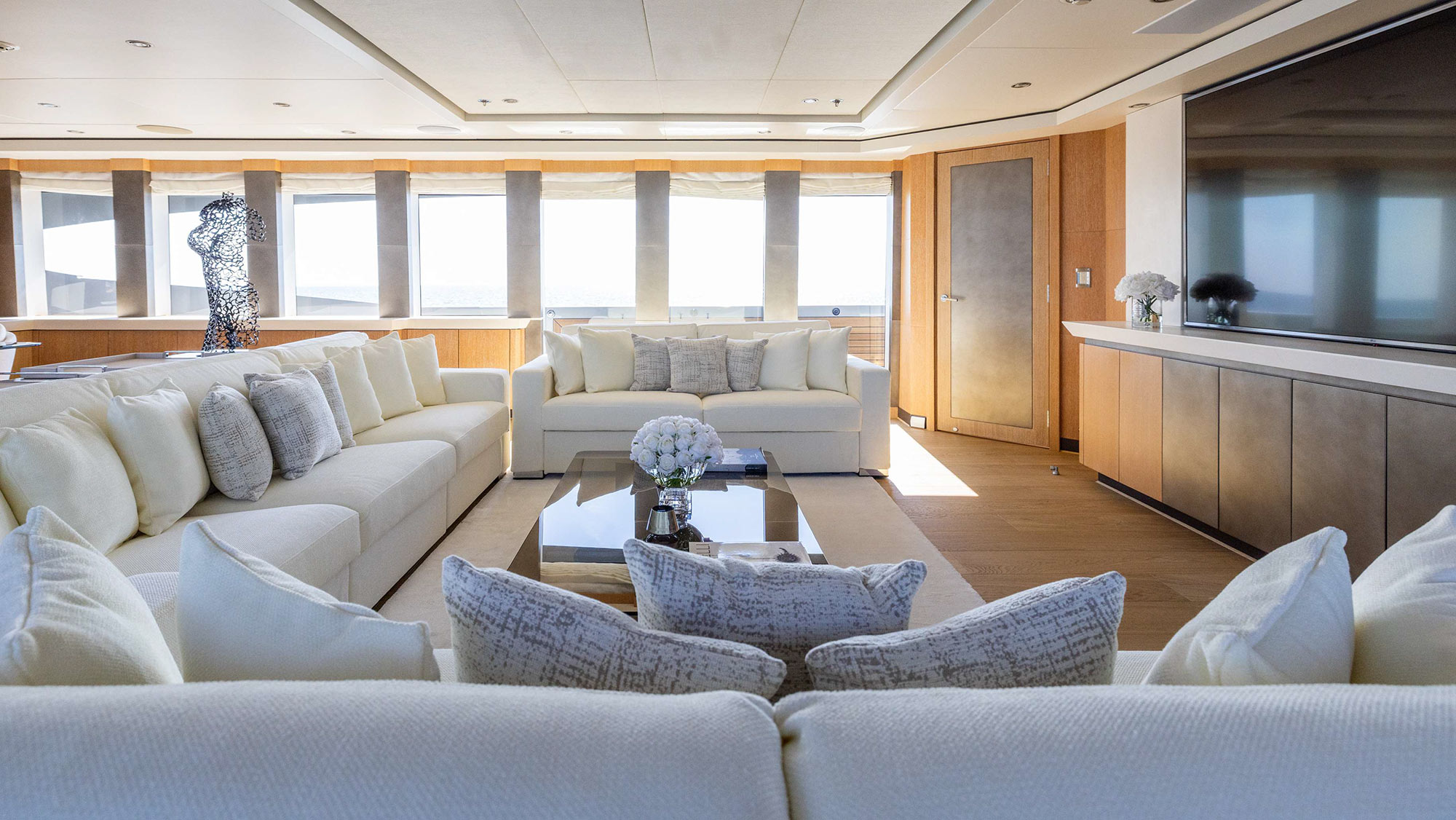

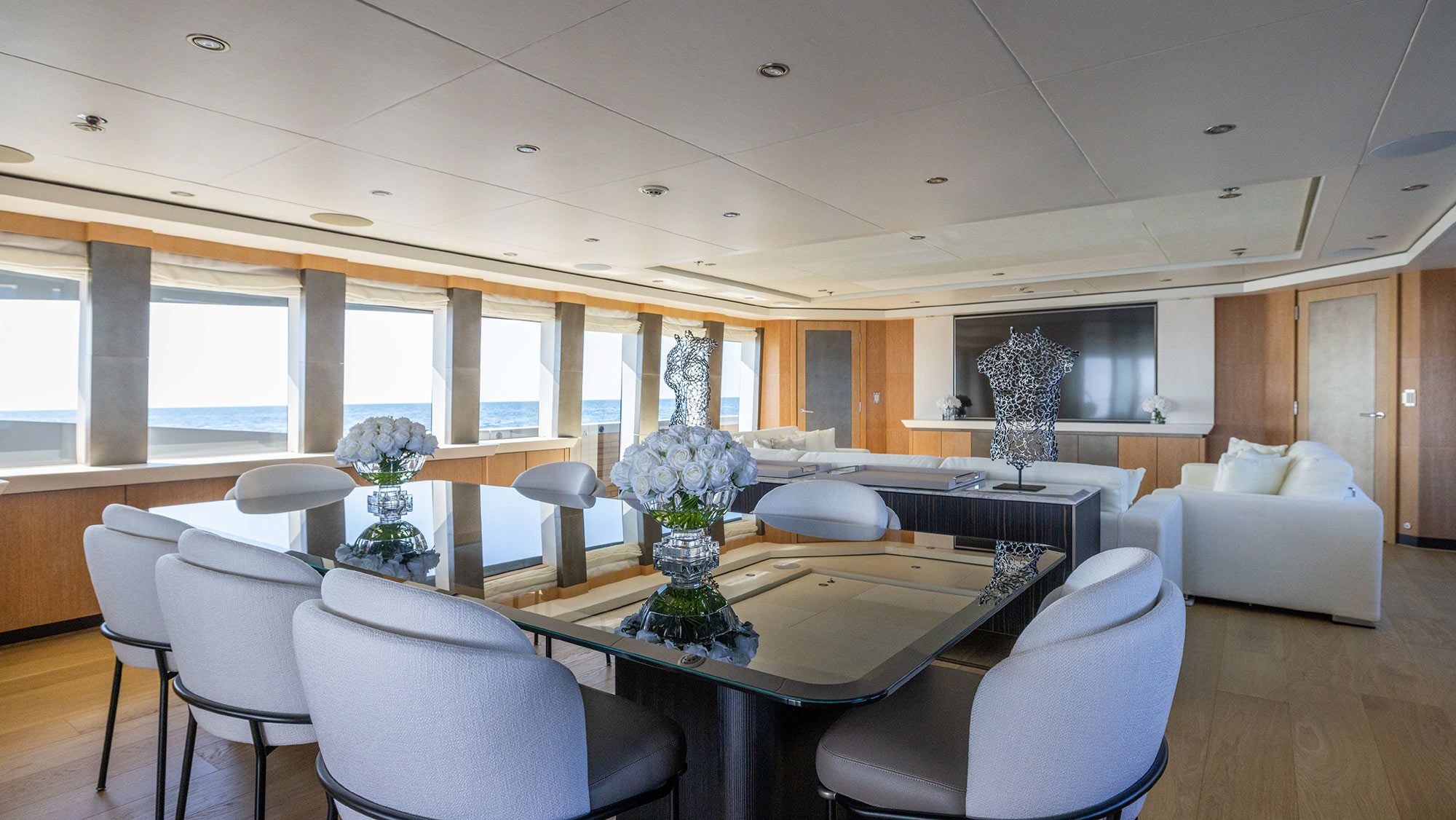

INTERIOR/MAIN SALON/DINING: The process involves preparing templates for marble installation and carrying out various repairs. This includes dismantling ceiling panels, modifying and reinforcing overhead panels, lowering ceilings, and repairing leather panels. Furniture is also dismantled for marble top removal and reassembly. The stern ceiling is removed, and panels are prepared for upholstery, with two new marble tops supplied and installed in the stern area. Central furniture is modified for repositioning, and lower furniture is dismantled for painting before reassembling. n°2 New sofa n°2 new armchair n°2 marble coffee table n° 1 pouf n° 1 sideboard n° dining table 10 chairs no° 2 aft sideboard

MD CORRIDOR: Disassembly of side columns, front parts, and marble caulking. Removal and restoration of leather wall panels. Fitting lacquered doors, panels, hardware, and extractor grilles. Dismantling leather ceilings, cleaning, sanding, and preparing for upholstery. Disassembly of wall-mounted furniture tops for upholstering.

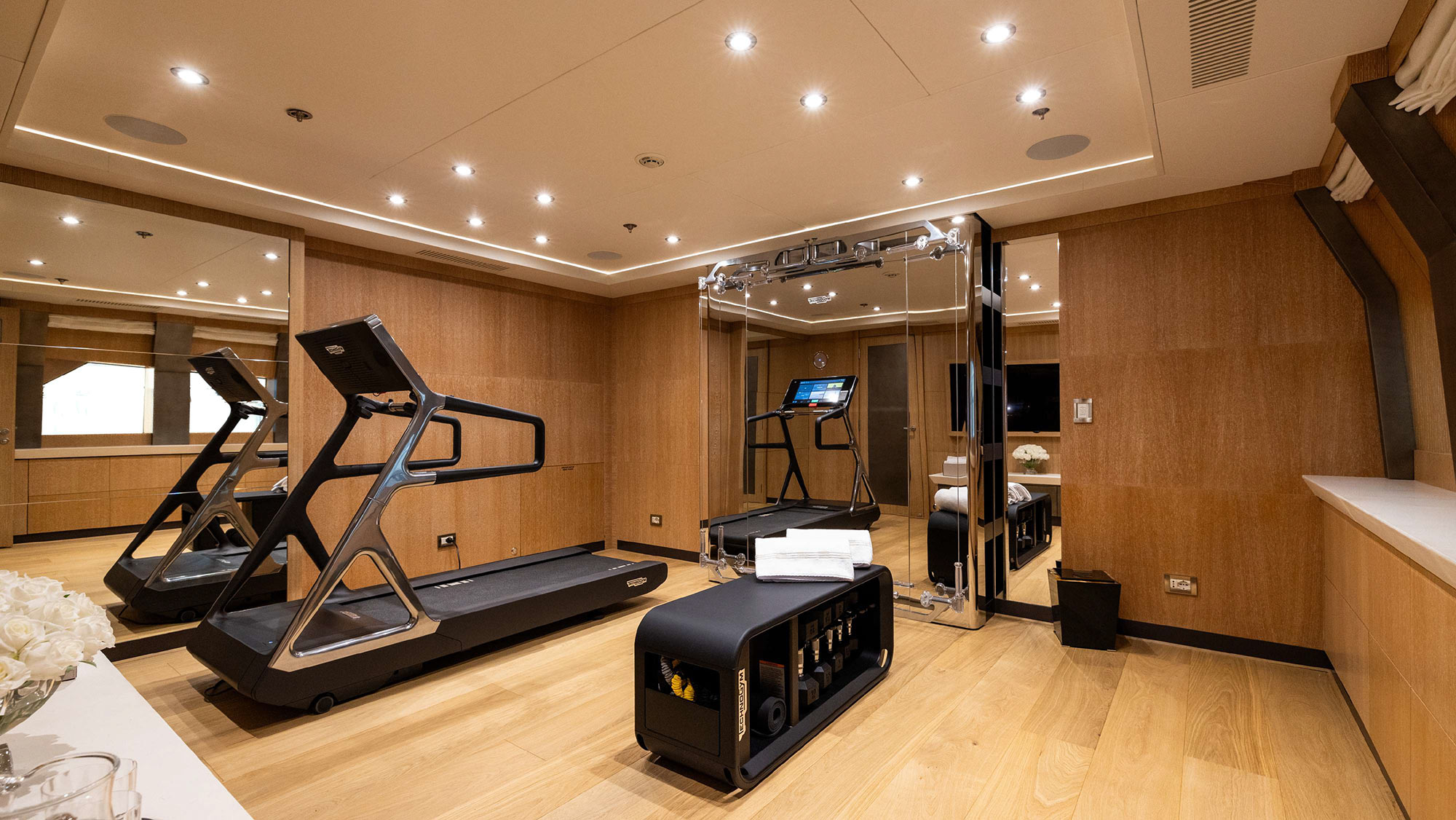

GYM: Modification of the left wall and restoration of panelling. Reworking of all celts for upholstery and fitting. Restoration of the front wall, mirror template preparation, and assembly. Dismantling columns, casting for marble, and preparing for painting. Construction of a marine plywood top for low marble cabinet cover. Dismantling leather wall furniture and restoration of panels for mirror templates. Supply of RUN personal Live and Technogym bench, kinesis personal vision.

PANTRY: Modification of right wall for wall unit installation. Removal of columns, caulking and preparation for lacquering. Removal of leather wall panels, fabrication of bleached oak doors and installation. Repainting of panelling, refurbishment of all ceilings and preparation for upholstery. Removal of wall furniture tops for upholstery. Supply and assembly of cupboards and wall units.

WINTER WORKS 2024/2025

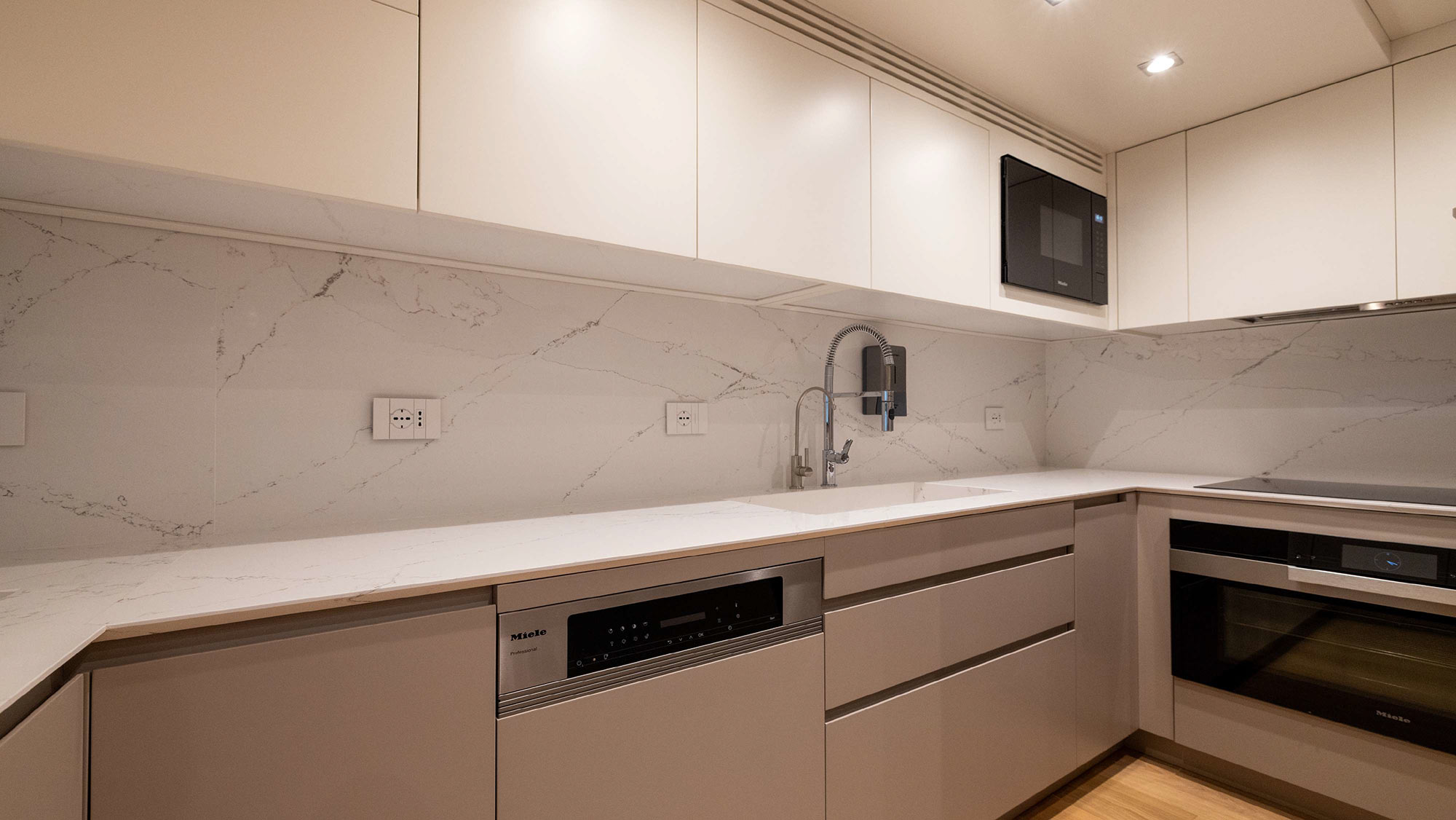

GALLEY: Modification of ceilings with removal of existing boxes and construction of marine staircase walls. demolition and renewal of furniture, countertops and wall coverings. Refurbishment of all ceilings, to be lacquered white, left/right walls and stair frames. Removal of refrigerator drawers and supply of new drawers. Creation of closures to separate zopna galley and crew mess. Supply of furniture for various appliances. Disassembly and reassembly of the kitchen, new kitchen furniture, new kitchen design and new appliances. Quartz cladding of kitchen area, including 20 mm thick solid sink and hob. Supply and installation of the worktop and vertical panel for the main deck pantry cabinets in white Diocletian quartz.

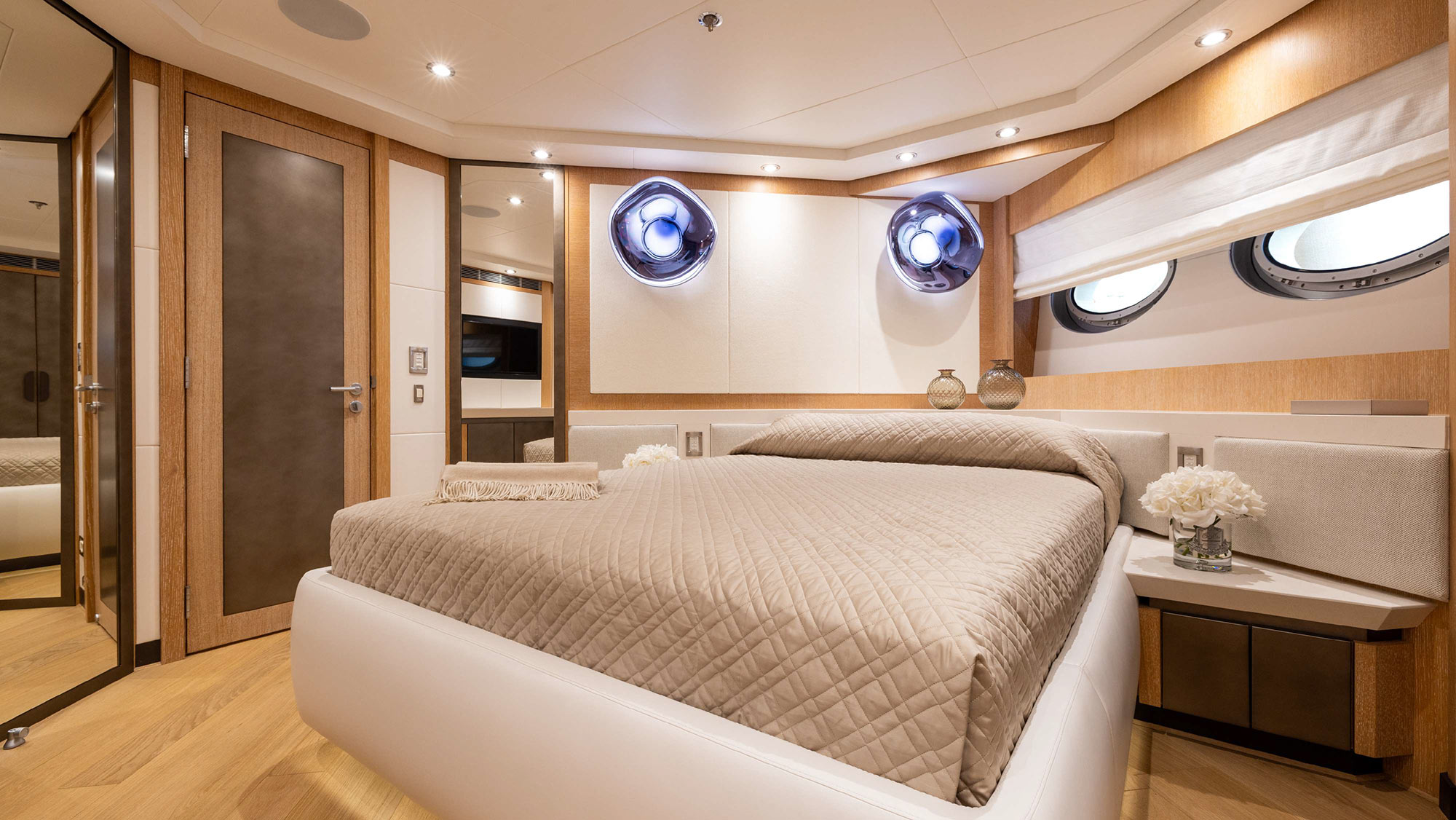

OWNER’S CABIN: Removal of leather bonnets, cleaning, sanding, and preparing for upholstering. Removal of ceiling rosette and restoration with new panels. Removal of all leather wall and furniture parts to be fitted with new leather panels. Dismantling the existing bed and supplying a new bed with the piston-opening platform, recessed plinth with LED recess, and template for the upholstered bed frame. Modification of desks, resizing right ship toilet, and restoring walls. Dismantling columns, caulking, and sanding for upholstering. Restoration of sliding door and making templates for TV wall mirror. Dismantling of TV cabinet top for upholstering, plus painting of cabinet doors. Dismantling of furniture tops and bedside tables for the stonemason. Restoration of headboard panels and painting of side panels.

OWNER’S OFFICE: Supply of 4 bleached oak shelves with satin-finish steel anti-roll bars. Supply of new desk drawers with painted fronts and push/pull opening system. Disassembly of desk top for marble installation.

GUESTS AND VIP: Removal of all leather wall parts and restoration of panels for the tapestry maker. Restoring hardware and painting cupboard doors. Dismantling of wall bed systems, restoring walls and upholsterer's panels. Removal of guest and VIP beds, supplying new beds with opening footboard and pistons, plinth with LED recess, and upholsterer panel template. Removal of ceiling rose and restoration with new panels for tapestry. Disassembly of furniture tops and bedside tables for marble installation.

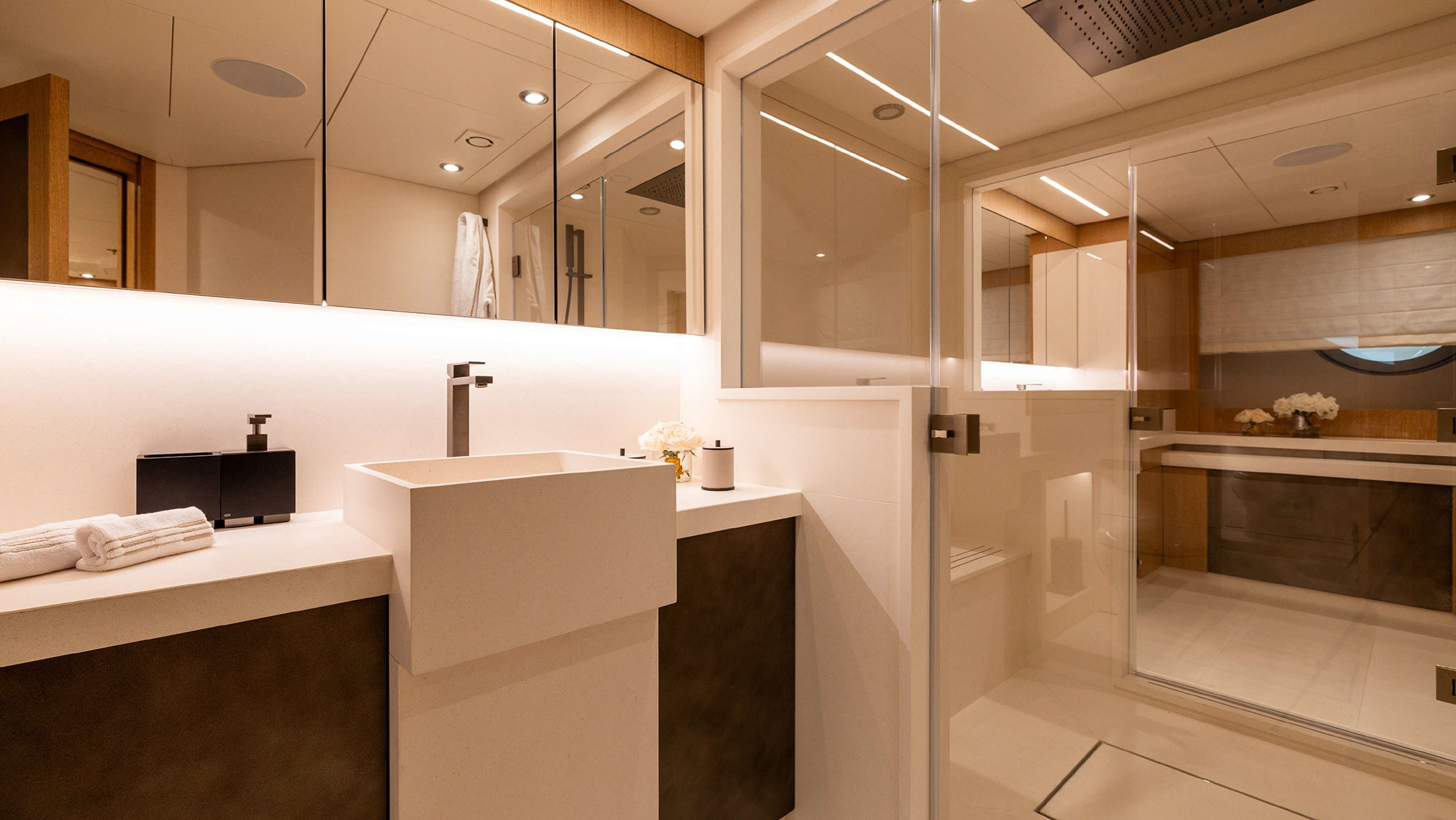

BATHROOM: Complete renovation of showers with new marble wall cladding and marble flooring. Installation of new vanity cabinets with integrated marble sinks. Supply and installation of new bathroom accessories, mirror cabinets, sanitary fixtures, and new faucets/taps. Supply and installation of glass shower doors with custom seals in the following bathrooms: Owner’s bathroom (with bronze fittings) VIP cabins, port & starboard (with bronze fittings) Guest cabins, port & starboard (with bronze fittings) 4 Crew bathrooms (with chrome fittings) Marble installation in: Day head – lower deck Owner’s bathroom – aft External bathroom – main deck

WINTER WORKS 2024/2025
DAY HEAD: Demolition of bathroom marble (day head on main deck). Redesign of new bathroom with the same finish as the cabin bathrooms
STAIRS & CORRIDOR: Removal of all leather wall parts in the corridor, installing bleached oak and varnished panels. Modification of staircase walls, replacing varnished panels. Ceiling alteration with removal of existing cornice and refurbishment of ceilings to match existing, with reinforcement of bricks.
BRIDGE: Restoration of dashboard with piston change. Reinforcement of panelling and restoration of coffins for upholstering and refitting.
INTERIOR DOORS: Disassembly of all interior doors, coating of doors. Reversing door opening direction between lounge and pantry with new hardware
WHEELHOUSE: Wheelhouse Interior chairs re-upholstery all interior pillows renewal
PARQUET: Main Deck and Wheelhouse parquet removal and installation- Owner's parquet removal and Lower Deck parquet installation: Removal of MD parquet floors (salon, stbd corridor, MD/LD staircase descent, port corridor, cinema room, cinema/owner descent staircase, pantry) and Wheelhouse parquet flooring with MD/wheelhouse ladder. Installation of MD and Wheelhouse parquet flooring. Installation of parquet flooring in the main deck galley and crew mess. Perimeter sealing of the parquet on all four sides.
CREW CABINS: Renewal of bathroom accessories, faucets, and beds.
INTERIOR: Renewal of all washbasin cabinets and marble shower walls in all cabins. Toilet accessories renewal (all toilet) Matteresses renewal (all beds) Sofa re-upholstery New freezer in Galley + additional daily fridge Duct cleaning

DOMESTIC APPLIANCES: New appliances and furniture for the laundry room (, new washer- dryer) New wine cellar n2 New fridge/Freezer for Crew mess

WINTER WORKS 2024/2025
New wine cellar installation on main deck exterior bar: New ice maker installation on main deck exterior bar
New fridge installation on main deck exterior bar: Drinking water filters on all Ice maker
Galley water ultrafiltration system: Renewal of galley appliances (microwave, oven, induction hob, freezer, sink and mixer tap, hood)
New marble on all top of furniture: Crew mess and galley appliances complete renewal: Main Deck -Exterior Bar Wine Cellar Fridge Ice Maker (Hoshizaki) Flybridge-Exterior Fridge Ice Maker (Hoshizaki) Crew Mess Fridge

EXTERIOR: External furniture. Modification of existing tops for marble installation. Dismantling of all doors, restoring internal furniture, including roller painting, and reassembling the doors. Preparing templates for fully assembled and finished marble tops. Modify barbecue furniture by removing accessories and installing a marble top, preparing templates, restoring furniture, reassembling new doors, and installing new accessories and tops. Removing the TV cabinet. Preparing templates for fully assembled and finished marble tops. Supply and installation of the cockpit bar furniture M.D. Replacement of exterior furniture handles of cabinet Coffee table renewal All exterior cushions, sunbed and pillow plus cover renewals, including all new rain-covers Sun deck bar marble renewal and appliances renewal Sundeck hatch overhaul and glass renewal Exterior tables revarnishing plus new stone top Supply of MiniPool Jacuzzi dimension: 212H Cm 90

DECK/AV: DECK: Removal of GMDSS installations (SSB, Sat-C x2) Sub-console arrangement with junction boxes GMDSS reprogramming Annual radio survey X Band radar - Magnetron replacement X Band Radar - Brush Replacement Replacing echosounder sensors

WINTER WORKS 2024/2025

AV: X Band Radar - Motor Replacement Mast Antenna Replacement N. 4 VHF antennas for VHF DSC N.1 VHF antenna for Class D VHF N.1 VHF antenna for AIS N.1 GPS Antenna for AIS N.1 GPS Antenna for GPS N.1 Navtex Antenna N.1 Wind Sensor N. 9 Steel antenna base Flir Camera check Flir Camera replacement N° 2 Display Garmin Speaker replacement Starlink services activation 1. Audio System Upgrade - Sonos Integration. Zones: *Owner Cabin, Gym, 4x Guest Cabins - Replacement of existing amplifiers with Sonos Amp units for wireless streaming and Crestron integration. *Main Salon, Fly Deck, MD Aft– Bow Area - Installation of Sonos Port units to interface with the existing Denon/Marantz amplifiers, enabling Sonos streaming and control. Crestron Control System Upgrade *Installation of a new Crestron CP4 centralized processor to manage the new GUI. *Reuse and relocation of the existing RMC3 processors into each controlled zone (to be physically placed near the respective AV equipment). *Complete redesign of iPad graphical interfaces, *System will support centralized and zone-based control of sources, amplifiers, lifts, and TVs and a PC for remote assistance. Video Distribution System for 1x Sky decoder (HDMI over IP) *Centralized decoding of 1x Sky decoder to Main Salon, Gym and Owner’s Cabin. Networking & Infrastructure *System routing and access managed via Ubiquiti Dream Machine Pro (UDM-Pro) and a Ubiquiti US-24-250W switch. *Use of existing Zyxel switches for general LAN distribution. Cabling Requirements (Mandatory) *In all 4 Guest Cabins, an optical audio cable must be installed from each TV to its respective AV rack to support proper ARC audio return. So additional cable laying will be required from electricians. Lighting System Upgrade. Lighting Control System Integration-Lutron *Reset and reprogramming from the scratch of the existing Lutron system *Integration into the Crestron system of the lights in the Lutron system (Curtains and HVAC system are not included). *Scene management, zone control, and day/night profiles via iPads. *Drawings of Lutron system

WINTER WORKS 2024/2025

In-Ceiling/In-Wall Speaker Replacement (Updated– B&W Upgrade)90: This upgrade includes the complete replacement of legacy speakers throughout key interior guest and Owner areas. The guest and VIP cabins are equipped with Sonance Visual Performance models, while the Owner Cabin, Gym, and Main Salon feature selected Bowers & Wilkins architectural speakers. All models have been chosen to match or exceed the acoustic and architectural specifications of the original units, ensuring full compatibility with the upgraded AV system. Provided: *1x B&W CWM 7.5 (Owner Cabin-in-wall rectangular speaker) *2x Sonance VP62RTL (Guest/VIP Cabins-round ceiling speakers) Installation Notes *Some legacy speaker cutouts (in red) require adapter rings or carparty adjustments. *Mixed-model pairs are installed symmetrically within rooms to preserve acoustic and visual consistency. *Final installation and testiing to be made

CCTV System Upgrade (Optional): Complete upgrade of the existing CCTV surveillance system with the replacement of all legacy Hikvision cameras and integration of a new Axis Communications IP-based infrastructure. The system will be centralized using an Axis S3008 and will be fully accessible via the Axis Companion application for both iPad and smartphone platforms. Cameras: *2x Axis P3267-LVE: Outdoor vandal-resistant dome camera, 5MP resolution, varifocal lens, with builtin IR for night vision. *1x Axis M3058-PLVE: Compact indoor 12MP 360° fisheye camera, ceiling-mounted for full room coverage. *1x Axis Q6135-LE: High-performance PTZ camera with optical zoom, advanced IR for low-light conditions, and app-controlled functionality. *2x Axis M4216-LV: Compact indoor dome camera, 4MP resolution with a wide field of view for versatile monitoring. *1x Axis Q3538-LVE: Premium 4K outdoor dome camera, rated IP66 for weather resistance, equipped with IR and enhanced performance features Centralized Network Video Recorder – Axis S3008 *8x PoE ports with integrated power and data *Built-in 2TB storage *Full compatibility with all Axis cameras in this proposal *Remote access via Axis Companion App *To be installed in the existing AV rack room Axis Companion Application Integration *Live view and playback on iPad and smartphones *Remote control of all cameras, including PTZ functionality (Q6135-LE) *Custom configuration for zone monitoring *Simple and secure remote management Video distribution *Check and fix of the actual video distribution and USB control from NVR to Wheelhouse and Crew Mess. Notes *All cameras provided in white finish.

WINTER WORKS 2024/2025

Additional ECS Transas system (ECDIS ready): Comprising of: N. 1 Transas PC RS8 N. 1 Wireless Trackball e Keyboard N. 1 Navi-Sailor 4000 ECDIS MFD Software N. 1 AIS-ARPA license N. 2 Nmea interface N. 1 Video Converter Technical activities PC preparation in lab. System on board preparation for new equipment installation Engineering of new system New system installation Setting & tuning of the systems Included Test, commissioning Handover & Training

Wheelhouse Trackball replacement: Radar Overlay on ECDIS N. 1 Analogue Radar Integrator Board N. 1 Software license for RIB Transas TX97 Chart – Med + Black sea Area

WATERTOYS: TENDER WILLIAMS Diseljet 565 Ordinary maintenance change of filters, zinor plates supply Spray dodger kit dark grey curtain colour supply VHF Garmin 115 VHF antenna installation New shower installation n°2 New Jetski SEA DOO REXP-X RS 325 MODELLO 2025 Audio package including passenger seat ladder SEABOB N3 SPECIAL Colour CUSTOM DUPONT ARTIC GRAY Yachtbeach Luxury Pool 4.1 x 4.1 x 0.2m Dropstitch

WINTER WORKS 2024/2025

SAFETY EQUIPMENT: FFE: Fire& Gas detection System Overall check Annual service and re- re-commissioning check of sprinkler system Annual inspection of the NOVEC fire suppression system. Engine room FSS overhaul Overhaul portable fire extinguishers LSA & FFE overhauling Em. Fire pump overhaoul LSA: Overhaul of liftrats
