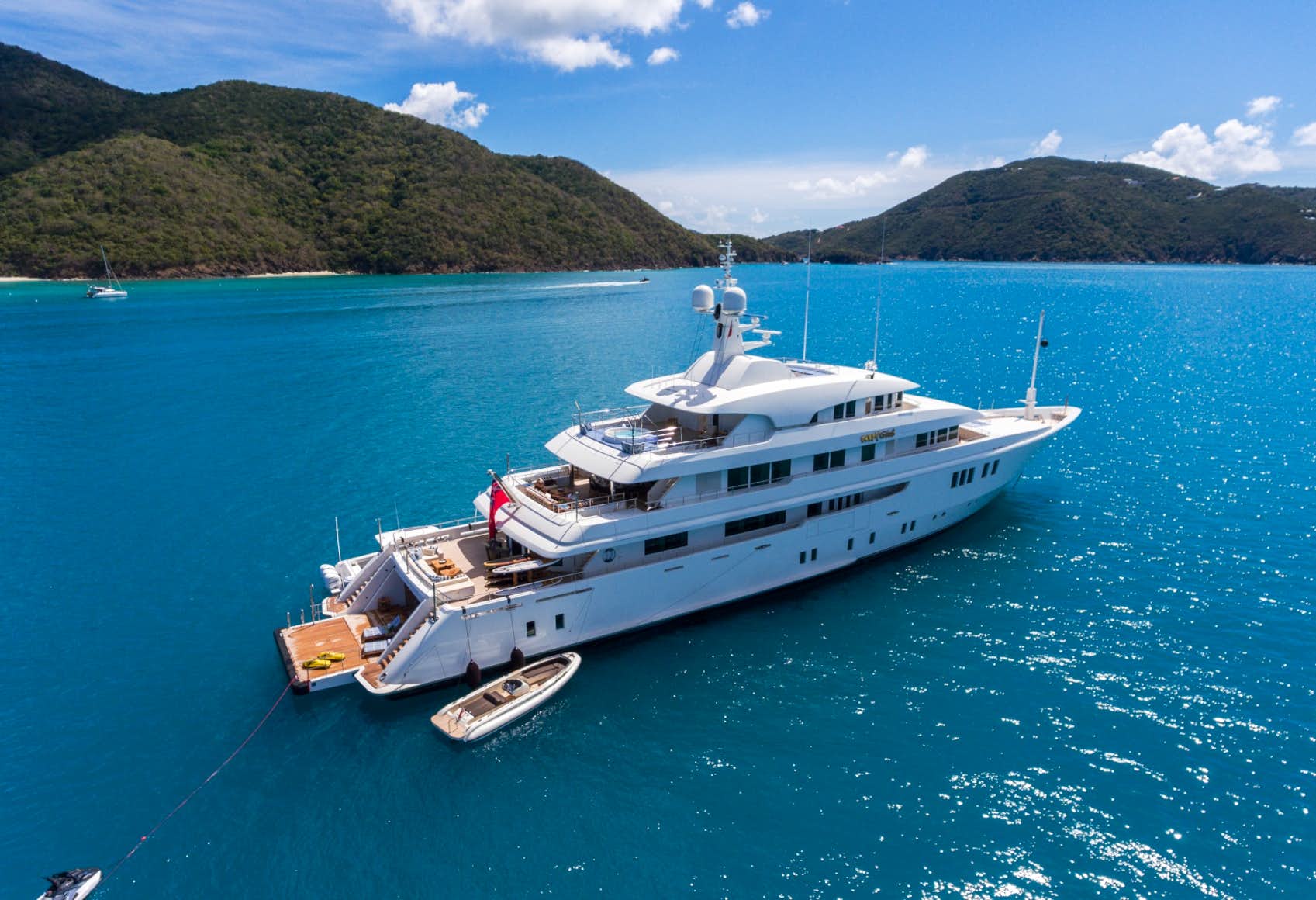

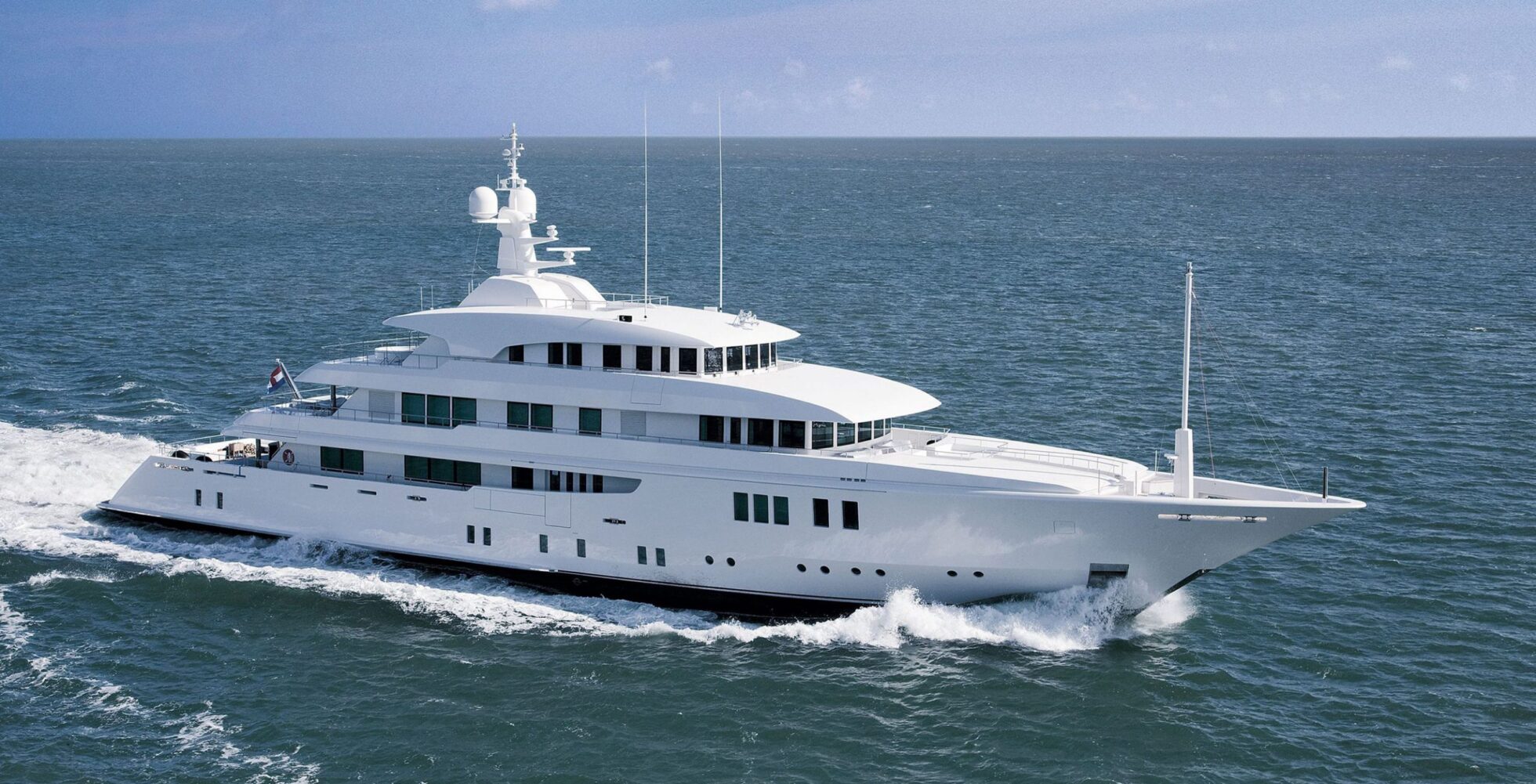

Icon62.5 m.
Main Characteristics
Length O.A.: 205 ft. / 62.5 m.
Beam: 11.56 m.
Engines: 2x MTU 2480 HP
Cruising Speed: 15 knots
Top Speed: 16 knots
Fuel Capacity: 193000 lts
Water Capacity: 29140 lts
More info
Built by Icon Yachts in 2013
Rebuilt / Refitted: 2017-2023
Cabins: 8  |  Guests: 16
Asking Price
USD 54,900,000
She provides luxury accommodations for up to 16 guests in 8 spacious staterooms with crew accommodations for up to 18 in 9 cabins. (15 Crew if one person is in the captain's, chief officer's chief engineer's cabins).
LOA: 205' (62.48m)
Beam: 37' 11" (11.56m)
Max Draft: 12' 1" (3.68m)
Hull Material: Steel
Superstructure: Aluminum
Hull Config: Full Displacement
Deck Material: Teak
Tonnage: 1,226.00
Speed: Cruising 14 Knots
Max 16 Knots
Int Designer: Cristiano Gatto Design Team
Ext Designer: Redman Whitely Dixon
Fuel Capacity: 51030 Gal
Water Capacity: 7713 Gal
Holding Tank: 5838 Gal
Year: 2013
Year Built: 2013
Engines: 2480 HP,Twin, Inboard, Diesel, MTU, 12V4000 M71, 12302hrs / 12446hrs
Staterooms: 8
Heads: 12
Captain Cabin: Yes
Classifications: Lloyd's
+100A1 SSC Yacht Mono G6

Galley & Laundry
Main Galley:
(2) Large sinks
(1) MKN Salamander
(1) MKN steam oven loner and convention oven combo
Turbo fan steam oven upper
(1) MKN Hob
(1) MKN deep fat fryer
Custom built-in (2) Refrigerators / (2) Freezers
(2) Hobart dishwashers
(1) Dumbwaiter to tank deck
(1) Dumbwaiter serving upper and bridge deck pantries
(2) Large heat lamps
Crew Galley / Mess Equipment:
(1) Panasonic microwave oven (1) Miele refrigerator
(1) Miele dishwasher
(1) Foster icemaker
(1) Garbage (cold) room
Additional Galley Equipment:
Main Deck Pantry:
(1) Miele dishwasher
(1) Frigonautica fridge
(1) Dumbwaiter
Upper Deck Pantry:
(1) Miele dishwasher
(1) Foster icemaker
(1) Frigonautica fridge
(1) Dumbwaiter
Upper Deck Aft (Exterior):
(1) Foster icemaker
(1) Frigonautica fridge
Bridge Deck Pantry:
(1) Frigonauticafridge
(1) Dumbwaiter
Main Deck Bar (Exterior):
(1) Hobart icemaker
(1) Frigonautica fridge
Laundry Equipment:
(3) Miele commercial washers
(3) Miele commercial dryers

Fuel capacity: 51,030 US gallons (193,200 liters)
Water capacity: 7,713 US gallons (29,200 liters)
Watermakers: (2) x 4,227 US gallons (16,000 liters)
Lube Oil: 819 US gallons (3,100 liters)
Waste Oil: 1,347 US gallons (5,100 liters)
Grey/Black water: 5,838 US gallons (22,100 liters)
Effluent holding tank: 5,363 US gallons (20,100 liters)
Bilge water: 1,479 US gallons (5,600 liters)

Main Engines
(2) MTU 12V4000 M71 diesels, 2,480 Hp each
Gearboxes: (2) ZF Model 7561 Ratio 4.939.1
Drive: (2) Wartsila propellers
Taken from Patton Survey:
RPM GPS Speed Fuel Burn Total LPH
1000 9.2 107 (28 gal)
1200 10.7 169 (44 gal)
1400 12.3 250 (66 gal)
1600 13.7 519 (137 gal)
1950 15.2 721 (190 gal)

Engine Hours and Upgrades
Port Main Engine (Total hours 12,302)
11/2019 QL3 - top-end rebuilds performed at (10,440 hrs)
Stb Main Engine (Total hours 12,446)
11/2019 QL3 - top-end rebuilds performed at (10,600 hrs)
All turbo's replaced Nov 2019
March 2022 both main engines had value adjustments and new injectors (P-hours 11,787 S-hours 11,951)
Current chief engineer on Party Girl for 6 years
Generator Hours and Upgrades
Port 212 KW Sandfirden Generator
(Total hours 24,000) Rebuilt 6/2018 at 14,850 hrs ----------- 9150 SMOH
Stbd 212 KW Sanfirden Generator
(Total hours 23,975) Rebuilt 10/2018 at 15,275 hrs-----------8700 SMOH
Middle 154 KW Sanfirden Generator
(Total hours 23,892) Rebuilt 11/2017 at 12,650 hrs------------11,242 SMOH
Emergency 96 KW Sandfirden Generator
Oil analysis done every 250 hrs on all generators - Available with engineer
New Metcalf Marine Exhaust installed 2019 on generators
Hug's completely serviced 6/2018 on generators

Electrical Equipment
Output: 230/400V/3 Phase/50 Hz

Shore Power: (2) MarPower SPC-11150 kVA 230/400V/50 Hz with (2) shore connections
Batteries: General Service 24DC, 1OOOA Radio 24DC, 190 Ah
Air conditioning: Heinen & Hopman
Watermakers: (2) HEM 40/4200 16.5 L/min
Stabilizers: (2) Quantum Zero Speed Model QC1800-M1
Bow Thruster: (1) Leroy Somers/Eekels electronic PLS 315S-T 160 kW/214.5 HP
Steering System: Van Der Velden VDY030-35 electric/hydraulic
Fuel Separator & Filtration: Separ and Alfa Laval PU-150 fuel separator
Oil/Water Separator: Facet CPS-2
Fire/Bilge Pump: (3) Main pumps
Boilers/Hot Water: (3) ACV HR BE boilers, ACV Etech 28 kW electric heater
Sewage System: Holland Marine Service MSD 11/40 VAC
Water Closets: Jets vacuum
Anti-fouling system - Cathelco

Communications Equipment
SATcom: (1) Seatel 4009 RH connector VSAT, (1) Sailor Fleet Broadband 250, (1) Sailor TI3000
Telephone System: Cisco Callmanager Express PABX
SSB: Sailor system 5000 150w
Watch Keeping Receiver: Sailor RT-5022
VHF: (2) Fixed, (2) Handheld GMDSS, 12 crew communications
Cellular Phone System: (2) GSM (1) Globesurfer (1) Sagem RT3000
Intercom: Phone Tech CIS talkback system

Navigation Equipment
Radar: (2) FAR2117B RCV 014 X-Band 120 NM range W/ARPA
Auto pilot: Anschutz
Gyrocompass: Raytheon Anschutz Magnetic
Compass: Cassens & Plath Auto Pilot: NG Sperry
Depth Sounder: Furuno FE 700 Dual view
GPS: Furuno GP-150
Log: Furuno DS 80
Ships Computer: Network all in one printer and scanner MFC 38690CDW
Chart Plotter: Transas NS 4000
Wind Instruments: Vaisala WXT 520
Navtex: Furuno NX700 AIS: Furuno FA 150
Searchlights: (2) Sanshin Model HRX-150
Air Horn: (1) Kahlenberg F3 3-518
Alarm / monitoring system: Eekels SCSER01 - Automation system - Total ship

Entertainment / Audio-Visual Equipment
Fitted with the very latest state-of-the-art audio/visual equipment including:
APPLE TV video server system, distributed to all luxury cabins, owner areas (and crew area and crew lounge with independent source and volume control
Latest generation LCD and/or plasma monitors
Blue Ray/DVD players
Denon iPod docks in all guest cabins, guest salons, beach club and crew area
Tru-Audio flush mount speakers in the cabins
Tru Audio Dolby Digital Surround speaker systems in the main salon, owner suite, VIP and upper salon
Sony waterproof speakers outside
Naval® TV/FM/AM antenna system and distribution
Seatel marine satellite television reception system, with receivers for the owner's suite, main
salon, upper salon, VIP, crew area which is linked to the crew lounge and laundry
Pop up television screen in main salon, upper salon and 4 guest cabins
Wi-Fi access via Cisco Wireless Access Points
The entire system is controlled via !Pod touch's that are linked to a wireless network to enable an
integrated information and entertainment network

Tenders & Toys
(1) 24' (7.5m) Dariel DT7.5 2012 Yanmar diesel with stern drive
(1) 21'4'' 2017 Novurania Inflatable tender with twin engines
(1) Safety rescue boat: Zodiac Ribo 4.5 m w/40HP Yamaha
(3) Yamaha Jetskis (2015's)
(2) Seabobs Jet 4.12

Security & Fire Fighting Equipment
CCTV System Color
(2) Cameras covering main side decks port and stbd
(1) Camera covering aft deck and gangway
(2) Mast cameras (forward and aft) (1) Camera in tender garage
(1) Camera Beach club
(2) Cameras in the engine room
(1) Control stations with camera matrix and color
Monitors on the bridge
Monitors: Color
Fire Fighting Equipment:
Marioff Hi Fog system in all accommodation areas, engine and control room and in large storage
Hi Fog sprinkler system
C02 system for the galley hood
Alarms: Eekels supply on all external doors and internal manually operated watertight doors

Deck Equipment
Anchor Windlass System: (2) SEC Ten Horn EACV
Aft Warping Capstans: (3) Maxwell type VC8000 electric reversible 2- speed, (1) on fore deck and
1 each on port and stbd on the main aft deck
Anchors: (2) Prohand Pool TW HHP-885 kg shortened shank
Boat Crane and Davits: (2) Cramm CD 22.000 tender cranes
Passerelle: Cramm Ocean 10 600T
Swimming Platform: Independent Yacht Builders transom door

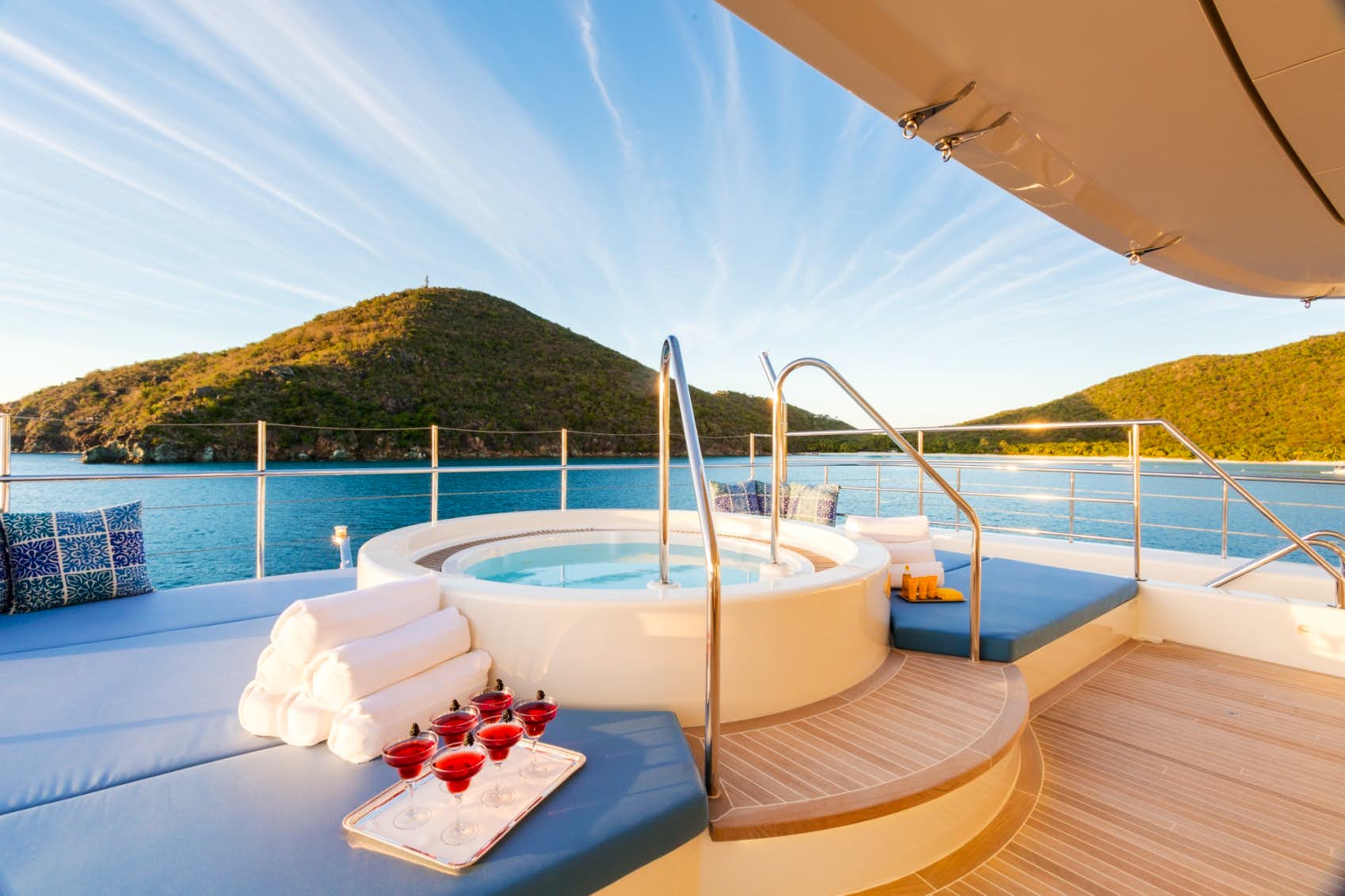

Jacuzzi Dip Pool: Aquademi Whirlpool
Side Boarding Ladders: Cramm Cair 1OT (starboard side)

2017 Upgrades
New Novurania tender (2017) with twin engines - Nov.
Vsat and TV antennas - new - Sept.
AC compressor plus additional new unit - Oct.

2018 Upgrades
Generators - rebuild - June thru Nov.
New Dariel engine - Sept.

2019 Upgrades
Main Engines top-end overhauls QL3 - Nov.
Upgraded generator room ventilation - Oct.
Engine Room HVAC reconfigured - March
LED lighting installed: stairs and awning - May
New paint completed stern to stern
Custom new awnings on aft deck, bridge deck and skylounge
(2) New Seabobs
Added 2nd VSAT antenna for uninterrupted reception

2020 Upgrades
Dariel stern drive replaced - Dec.
Bridge system panel, helm dash controls - new - June
Stabilizers overhaul - Sept.
Complete overhauled and upgrade
2021 Upgrades
Improved upgraded sound system in beach club

2022 Upgrades
Ten year class survey completed - May
Watermakers overhaul, replacement - Dec.
Electrical switchboard upgrade - May
Shorepower converters overhaul - Sept
Shaftline seals - April
Bow thruster replacement - April
Fresh, gray, sewage water tanks recoated - April
A/C handlers & fan coils - 31 replaced all new in crew quarters - Oct
Main engine’s overhaul - Top end overhaul, new injectors
Generator’s new exhaust burners - May
Hull Sea Valves - 26 replace new - April
Various teak improvements - Sept.
Electric sliding doors rebuilt- also replaced x3 new seals - Oct.
Added new TV's: Wetlounge (Bridge) and guest cabin

2023 Upgrades
Installed new Creston system, lights, shades, TV, Apple TV
Starlink installed - June
(2) New Hobart dishwashers in galley
New new commercial icemaker in beach club
New washer and dryer
